Friday, April 16, 2010

Project Powerslave - UPDATE!

Well it's been a while here, but Project Powerslave is underway. I finally managed to drill and install the Leo Quan Badass II bridge and tricky little channel from the top of the body to the control cavity for the ground wire. The bass is assembled, waiting on strings, set-up then teardown for paint. Pics to follow.

Sunday, July 5, 2009

73 Effects

Ok, so looks like my focus is shifting away from guitar projects and into effects pedals. I just set up a new blog, http://73effects.blogspot.com. I'll be posting all of my pedal-related nonsense there, copying over a lot of the pedal content from here. I also registered www.73effects.com. Initially it'll point to the new blog while I get a website up and running. Since I have a small production run of Univox Superfuzz clones in the works, need a spot more suited to sell them and future pedals. I'll still be doing guitar projects and will post here, since those P-Bass parts are staring at me, waiting for them to be assembled.

Thanks to the 1100+ folks that hit this blog so far. See ya on the other side.

Wednesday, February 25, 2009

Project Timmy GT Update: Stripes!!!!!

Sometimes the second time's the charm. My first attempt at the racing stripes ended in teeth-gnashing frustration and after at least three repaints, I sjhelved the project for months. This time, after learning from my heinous mistakes, I succesfully striped the thing without needing a stiff drink or anger management therapy. Check it out:





No, I did not go all the way around the body with the stripe. I ended it at the edge of the horns but ran it around the side of the body almost to the back. At this point in the 2+ year history of this project, I'm taking the fewest chances possible to screw it up. If I have to strip it and repaint it again, I might just set it on fire and smash it with a hammer until somebody calls the cops. It's a bit of a cop-out, but I'm happy with it, and the sooner I can start clear-coating it, the better. The stripes themselves were eyeballed - no measuring at all, just tape, spray, and pray. I think I nailed it.

I've used pretty much everything imaginable on this body to strip and re-strip and re-re-strip it after screwing up the paint. Belt sander, random orbital sander, every size, shape and grit of sanding sponge, block sander, chemical stripper, heat gun, a bunch of scrapers, steel wool, naptha, and random objects from around the house that i wrapped with regular old sandpaper. If the clear coating goes well, God willing all I have to do is wet sand it, polish it and put it all back together.

Here's are some pre-clear mock-up shots:





The next update for this project will be the completed pics and history of the project, which started in November of 2006.

Wednesday, December 31, 2008

Project Powerslave: The Beginning

Back in 1984 an impressionable 6th grader out shopping with his mom asked for some cash to buy this vinyl album called 'Masters of Metal".



It was a K-Tel compilation with artists like Dio, Twisted Sister, Rush, Dokken, Y&T, and Iron Maiden. This kid had just started discovering the so-called "heavy metal" bands back then. Anything with loud, distorted guitars and screaming vocals was all he needed. Though Masters of Metal provided lots of heavy guitar riffage and vocal histrionics, one song on this album hit him like a sack of hammers: Iron Maiden's Run to the Hills. This kid then learned the delicate art of needle-dropping so he could play that song over and over and over again. Didn't have that handy "repeat" button like we do now. You had to pick up the phonograph needle, find the groove between the songs and drop it onto the spinning platter. It was tricky but well worth the effort. That way you could avoid very non-metal songs on that record like "Tom Sawyer" and "Dancing in the Streets". Seriously - when was Rush ever considered metal? And of all VH songs they picked that one on purpose. Maybe since it was a cover song it came cheaper. Who knows. Anyway...

Aside from the blazing dual lead guitar of Adrian Smith and Dave Murray and the air-raid-siren vocals of a young Bruce Dickinson, what separated Run to the Hills from the rest of the dreck on that album was the rhythm section. (not implying Rush's rhythm section is "dreck") Steve Harris and Clive Burr sounded like a thundering herd of pissed-off elephants, but mostly it was Harris' percussive galloping bass line made that song move. Lots of kids wanted to play lead guitar after hearing songs like this, but when a bass player can drive a band like Harris can, some kids want to take a different path. A path with fewer but heavier strings.

In case you've never heard it, here it is. Turn it up.



So later on, that same kid picked up Iron Maiden's latest album "Powerslave" and pretty much wore that tape out. There was no turning back. So when that inevitable moment happened when a young metal fan wants to learn to play guitar, he decided to learn bass, a decision directly influenced by Steve Harris and Iron Maiden. Now, almost 25 years later, that same kid is planning a Precision Bass project as a tribute to his first real musical influence.



Ok,so now that we have the dramatic back story out of the way, here's the plan: Build a P-bass replica of Harris' main instrument during the 80's, and name it after my favorite and most influential Maiden album from that era. Harris almost exclusively played a 1971 Fender Precision Bass with a maple neck, sparkly blue body, Badass II bridge, mirrored pickguard, and a Seymour-Duncan Quarter-Pound pickup. Very distinctive yet still a pretty standard Precision Bass. I'm not going into great detail to replicate every nick, every scrape, every part down to the exact excruciating detail, but will assemble a P-Bass that's heavily influenced by his and will be unmistakeable as a Steve Harris bass to anyone who claimed to be a fan of metal in the 80's.

Wookie, my brother from another mother, donated the majority of the parts for this project. I can't thank him enough. I got a beautiful Ash P-bass body, maple neck, chrome tuners, chrome dome knobs, and a bridge. I have a Leo Quan Badass II bridge on order, should be here soon. Anyway, I'm starting with this pile of parts so far:



I can't believe I got almost all of these parts for free. Again, huge thanks to Wookie. The mirrored pre-wired Eden pickguard came by way of an ebay vendor in Hong Kong, and it doesn't quite cover the route in the body for the controls. It was $35, so not expecting much. The suspect here is the larger-than-standard route by the body manufacturer Mighty Mite - several people I've talked to report the same thing. The Mighty-Mite pickguards supposedly fit fine, but they didn't have a mirrored one. So I'm either shipping my Eden off to the boys at Pickguardian (www.pickguardian.com) and having them custom-cut a guard for me, or filling in the small area just above the output jack with s piece of scrap wood and Bondo, sanding it flat and painting over it. Jury's still out on that decision. What's more exciting is that i can actually drill the right holes for the bridge and neck because my wife got me a drill press for Christmas. No more shaky hand drill screwups like I had with the doomed Project Shredder. Did I mention how awesome my wife is?

Stay tuned, more updates to come on this project. Up the Irons!

Monday, December 8, 2008

Nate's Appetite for Destruction

So it seems that people will do some crazy things to get featured here. Not sure why - it's not like I'm battling Google, Youtube and www.clownpenis.fart for the bulk of the web's hits, but I guess it does bring a bit of notoriety. Someone went to the extreme and and broke his guitar so I could fix it and post it's sordid tale on the blog. The suspect in this beating is my very good friend Nate, who does have a bit of a violent streak. The guitar came into the 73 Guitars ER on Nov.23 showing signs of being in an abusive relationship.

The initial medical report:

Here's the patient: "Bridgecraft" Strat copy. Typical Chinese or Indonesian plywood El Cheapo electric guitar. Complains of sharp frets, wacky neck angle, finished in a thick candy goop, ugly rosewood fingerboard, and high action. Presents with split tremolo block.



Diagnosis: Somehow, Nate managed to screw the trem arm into the block so tightly that it never came out. He then tried to wrench the arm hard the other way in a failed effort to remove it that the block actually split in half. Now, that's Ok. Shit happens with guitars, and these low-end Chinese axes are probably made from wadded-up cheesecloth and old fence wire so I'm not surprised something broke. However what followed can only be described as the most ghetto-ass fix I've ever seen on an instrument, and I've seen some real winners in my day.

Yep, that's electrical tape.


So once I composed myself and changed my underwear after letting out a gleeful pee squirt from laughing so hard, I peeled off the tape to get a better look. The tremolo arm had become one with the block, and the block had to die to separate the two. Kinda romantic if you think about it for a minute. Go ahead - think. I'll give you a minute.



Ok, enough Romancing the Trem. While it's perfectly acceptable to rag on ol' Nathan for taping up a split trem block and trying to play it, I must give him credit and show respect where it's due. Nate heard the roar of the rock-and-roll animal deep within him, and it was just too much to contain. Broken guitar? F that. He's gonna fix it any way he can, crank it up to 11 and feed that animal. It almost brings a tear to my eye.

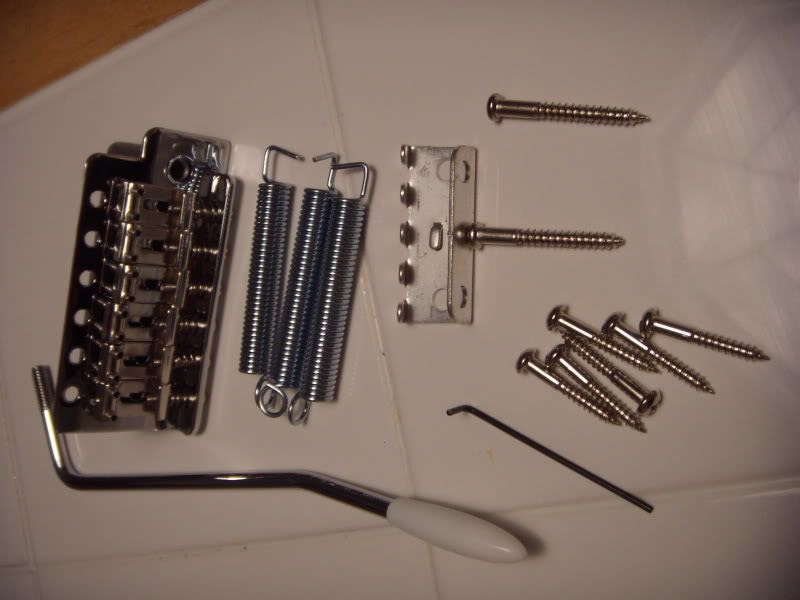

Repsect for Nate's appetite for destruction aside, we still have an unplayable guitar spitting up plywood wood chunks all over the 73 Guitars emergency room. This guitar is NOT about to rock and as such cannot be saluted. We need a bridge, STAT. So Jay and the good folks at Guitarfetish.com come through for me with a replacement bridge kit. Vintage style bent steel saddles, post holes spaced for import low-end Strattycaster knockoffs, can't beat it for $30. Not sure how toneful it is, but when the guitar is made out of old Chinese newspapers and ground-up coffee cans, it doesn't matter.



The bridge lined up perfectly, but something sinister lurked underneath the attractive blue finish on this guitar: the wood. Check this out:



The bridge claw has been mounted on two new holes, just next to the stripped-out original holes. Yikes. As I suspected, the crap wood that made up the bulk of this guitar's material wasn't so welcoming to the mounting screws after being removed once or twice previously. The wood was crumbly and soft and then I realized this job was going to be like installing a tremolo on a birthday cake.

Somehow the 6 screws on top held OK, One or two didn't really grab any wood, but it held. Underneath I re-used the second holes to mount the claw. It took some finesse but the screws held. Maybe the birthday cake was a bit stale by now.



So now we have the bridge installed and I'm ready to bolt everything back up, string it, set the intonation and give it back to Nate the Rock and Roll Animal. It's against my personal convictions to return a guitar to someone without fixing painfully obvious playability issues. The neck angle on this thing was so far out-of-whack it looked like a crippled dog's hind leg. Like one of those dogs that has the plastic funnel around their necks and use those little doggie wheelchairs that they drag themselves around on? You know, like when you see that you wonder why the owner doesn't put the poor thing out of it's misery but maybe it's all that person has. Maybe their husband died and it was his dog and they can't part with little Barky Poo so they just spend everything they have to keep the pathetic thing alive when it's living a miserable existence to just represent a happier time in the owner's life and the poor mutt has to pay for it's owner's guilt and sadness by living one more horrible day trapped in that broken little doggie body.

Wait - where was I...oh yeah. The guitar. Here's where the great internal struggle about whether or not to fix the neck started.

Do I just give it back like this, knowing it could be better? Nate's my friend and if he's trying to learn guitar, it would be nice if it played a little better. Nobody else is gonna fix it for free. Or, do I take a chance on unscrewing the neck and stripping out the holes in the neck? It looks like solid maple, but even a mozzarella stick looks solid until you rip into it and the innards just drip out. Maybe the neck has the same empty-pizza-box consistency that the body does. If I can't get the neck back on, Nate's rock-and-roll animal will kill me and scatter my bones. What to do...

Of course I unbolted the neck and started shimming it. It already had a thin piece of sandpaper in the neck pocket, so I'm not the first person to recognize it was beyond bad. I kept throwing cardboard in the neck pocket, testing it and shaking my head in disbelief as I cut another shim out of a shoebox I had laying around. Eventually, this neck angle required a pile of cardboard roughly as thick as one of those Hershey's Miniatures to get it lined up.

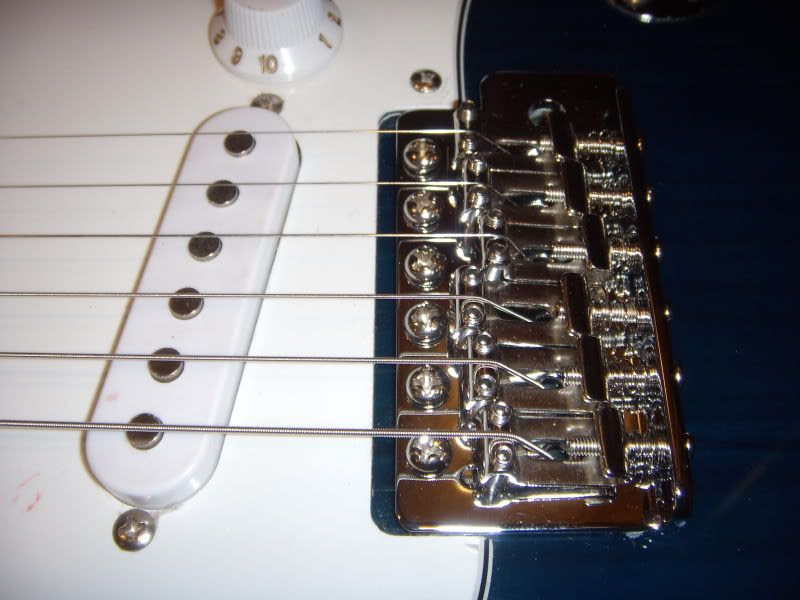

So here we are: new bridge, shimmed neck, new lease on life. Discharged from the 73 Guitars ER on December 6.



To be honest it's actually a nice guitar. I had fun bashing it a little bit but thanks to the hockey-puck sized shim in the neck and some new strings it plays pretty well and even sounds almost good for a $100 guitar. And don't think I let the delicious irony in this guitar's brand name go unnoticed. That's funny right there, i don't care who ya are. Nate really "crafted" the bridge on this one.

Thursday, October 23, 2008

Antimatter Demo

Here's the video demo of the Antimatter Octave Fuzz. Guitar used was my Fender American Standard Strat with a SD Lil' '59 humbucker in the bridge and a Laney AOR 50 combo. As always, sorry about the playing. This demo covers the wide range of fuzz and strange noises this pedal can make.

Sunday, October 19, 2008

Antimatter Octave Fuzz

I'm certainly no physicist and I'm not qualified nor cranially equipped to speak intelligently about quantum physics and particle theory BS. In layman's terms, Antimatter is this mysterious negative-image of everyday matter that we can touch and see. However should the two ever meet, it's cataclysmic. Everything goes boom and it's scary. It's also the world's most expensive material and it annhiliates everyting it comes in contact with. I like that last part about the annihilation. So...thus we have the Antimatter Octave Fuzz. Mysterious, dangerous, and when used improperly can cause such annihilation.

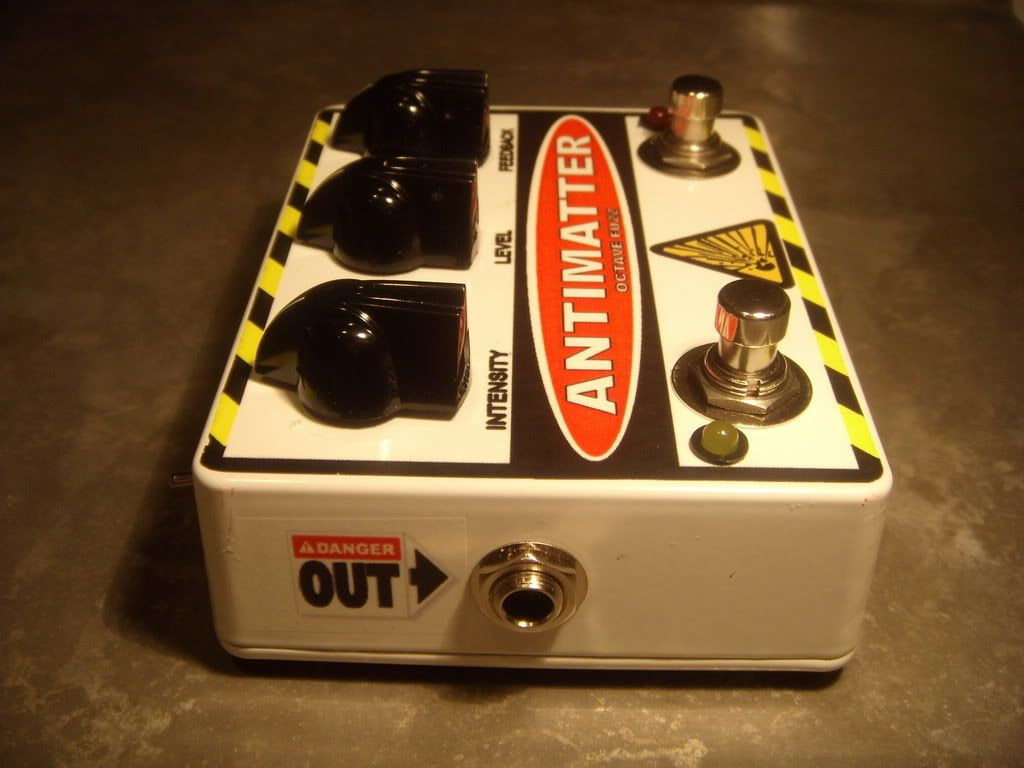

Ok, not really, but it is a damn cool fuzz pedal. It's an Octavia clone with a footswitchable feedback loop and octave on/off switch. Basically it's a BYOC Octave Fuzz PCB in a 1590BB enclosure and some additional tweaks. The right-side switch and pot activate and control the feedback loop.

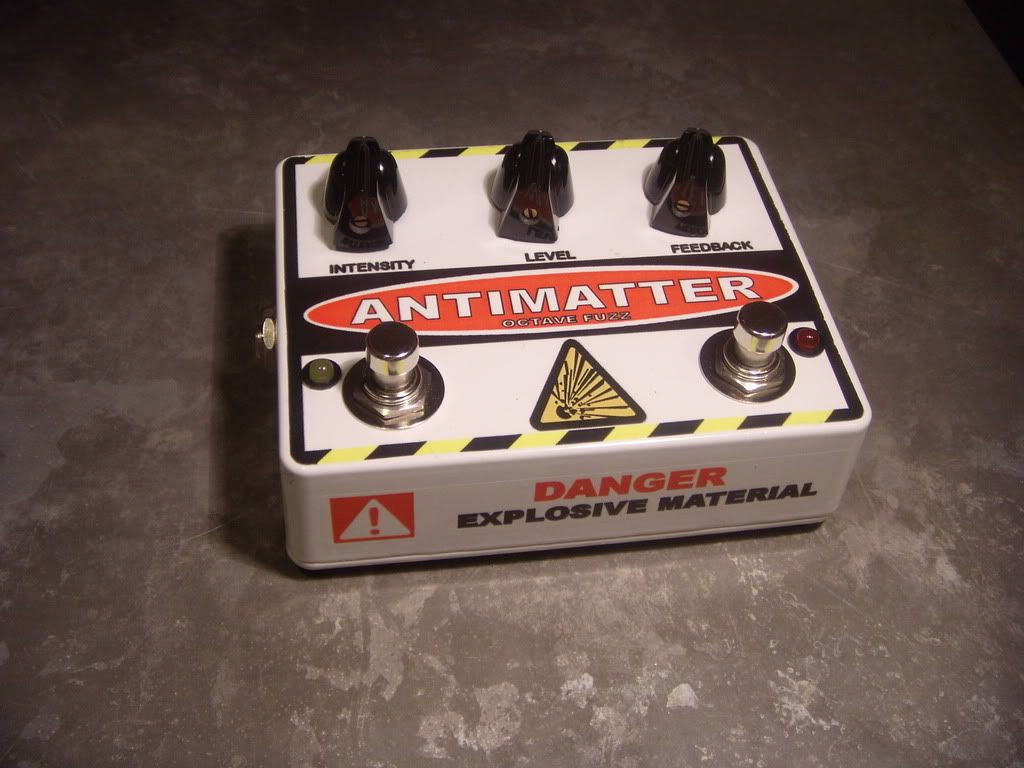

Got the enclosure from Small Bear, powdercoated white. Not thrilled with the quality of the powdercoating, though. Full-face laser decal on the top. I still need to clear-coat it.


Obviously I'm going for a "warning" sign look, with graphics inspired by the signs you might see around high voltage lines or nuke plants. Don't say I didn't warn you.

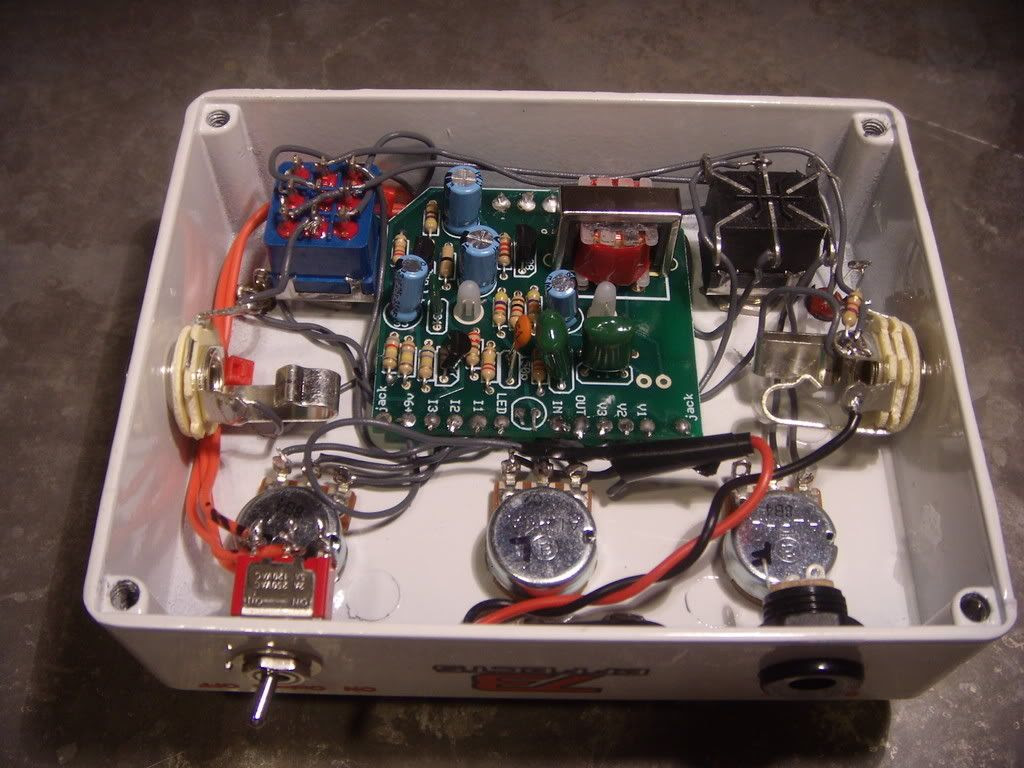

The guts - the 9v jack isn't hooked up and there are still a few spots that need some heat-shrink, I'm going to do that after I clear-coat it.
